22mm or 30mm Push Button Switch Cover Lockout Device

22mm or 30mm Push Button Switch Cover Lockout Device

Product Item : BD-D54
Category： Emergency Stop Button & Switch Lockout
Material: high-strength resin PC
Installation dia.: 22mm/30mm
Hold up to 2 padlocks
INQUIRY EMAIL

Model	BD-D54	Brand	BREED
Product Name	Push Button Lockout	Place of Origin	Suzhou City, China
Certificate	CE	Material	PC
Colors	Transparent and red	Capacity	Hold up to 2 padlocks

¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨

▶ The lock is made of high-strength resin PC.

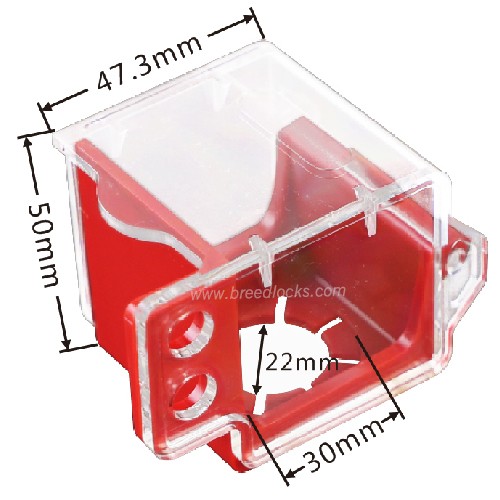

▶ Suitable for emergency stop button with base diameter of 22mm or 30mm.

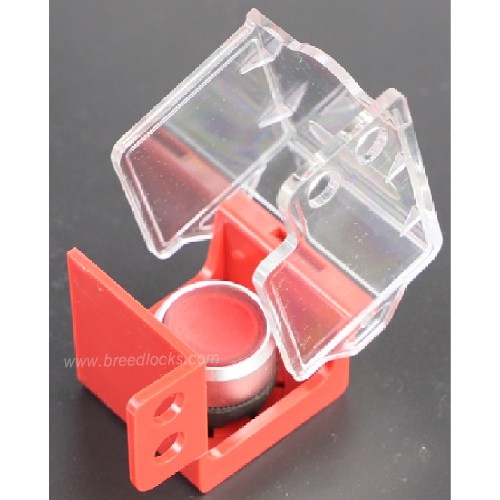

▶ Disassemble the stop button to install the lock. Then restore the button and pull the cover.

▶ Accommodates buttons up to 40 mm diameter and 45 mm tall.

▶ Laser logo or molded logo are both supported.

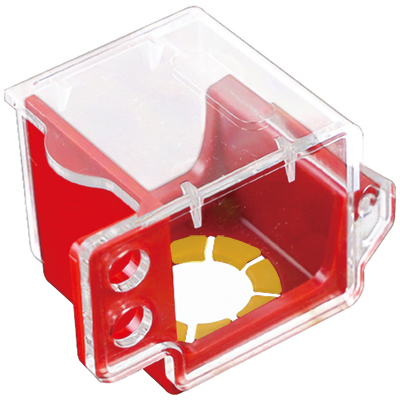

▶ The yellow part can be removed with pliers to fit 30mm diameter stop button.
